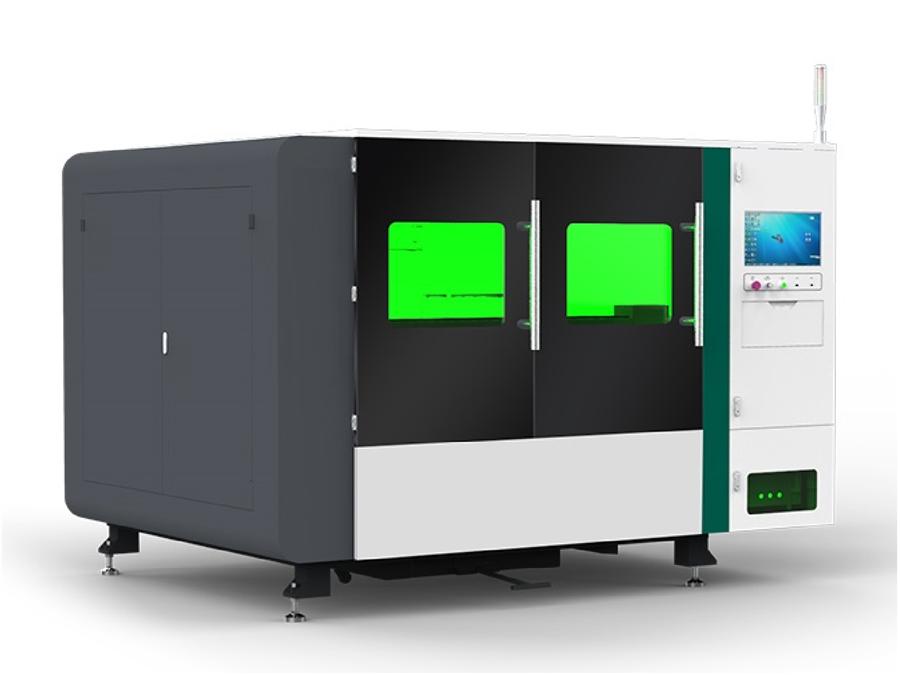

Technical Index:

Fiber Laser source : 2000W to 10000W Fiber Laser

Working size: 1300mm*900mm

Cutting thickness: 0.5-20mm (Depending on the material)

Laser Head: Raytools or BOCHU

Laser Wavelength: 1064nm

Position accuracy: 0.03mm

Repeat Precision: 0.02mm

Y Axis Route: 900mm

X Axis Route: 1300mm

Z Axis Route: 100mm

Maximum cutting speed: 60m/min.

Operating temperature: 0℃-40℃

Workbench maximum load: 800kg

Drive type of X, Y axis: Imported servo drive (Fuji, Japan)

Servo motor: Japan Fuji servo motor

Control system: WEIHONG or Cypcut system

Software support formats: AI, BMP, PLT, DXF, DST etc

Moving mode: Imported Rack

Rack transmission: APEX or J&T Dual Rack For Y Axis

Guide Rail: Taiwan PMI or HINWIN Guide

Reducer: Shimpo

Auxiliary gas: N2 ,O2

Application:

Cutting on plate or tube in metal, mainly for cutting on SS, carton steel, manganese steel, galvanized plate, alloy plate, rare metal.

Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting,

poster, auto parts, display equipment, hardware and metal processing.

Video:

https://youtu.be/uqiGu7ucYIc           (1mm stainless steel by air)

https://youtu.be/YISlTaCEcwc              (3mm carbon steel by oxygen)

https://youtu.be/A6BRebAu0Bs           (2mm carbon steel by air)

https://youtu.be/eC_urvxhdeE             (1.5mm carbon steel by air)

https://youtu.be/znk8t8U29gs             (1mm galvanized sheet by air)

https://youtu.be/_j7hANVlMkk            (Steel Square Pipe/Tube with Rotary)

https://youtu.be/EHR4pCrkBdM   (Steel Round Pipe/Tube with Rotary)
