Technical Index:

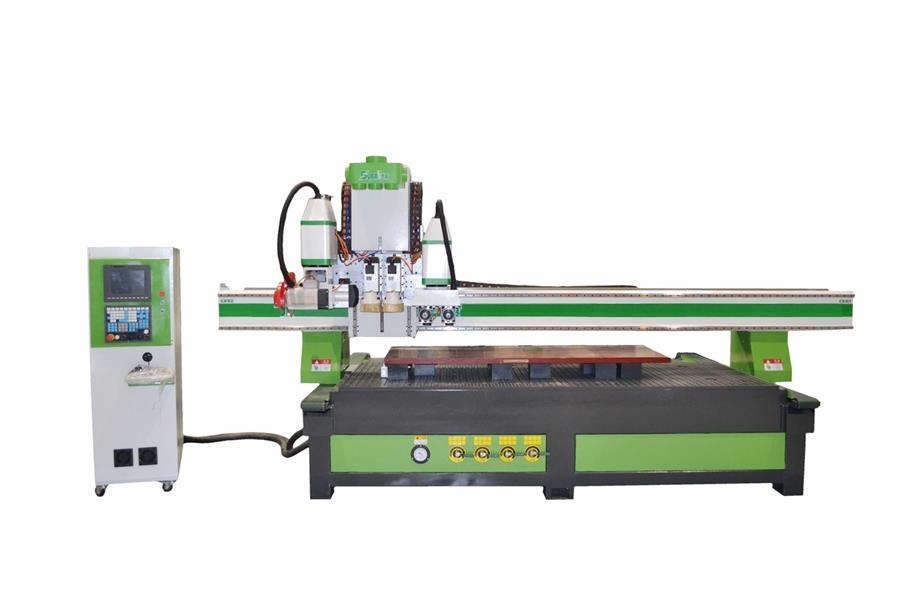

Product number | 12 Cutters ATC (Auto Tool Changer) CNC Center |
Working size(X、Y、Z) | 1300mm*2500mm*200mm |
Lathe bed | Super heavy-duty welded bed and thickened steel pipe to ensure permanent deformation of the finishing |
Working voltage | 380W 3 phase/220W 3phase/220W 1phase |
Spindle motor | HQD 9kw ATC air-cooled spindle |
Spindle speed | 24000rpm/min |
Max working speed | 25m/min. |
Max running speed | 120m/min. |
Accuracy | +/-0.05mm |
Repeatability | +/-0.02mm |
Column | 25MM steel plate welded square tube by machining center |
Controlling system | Taiwan LNC controlling system |
Motor | LNC1500W servo motor from Taiwan |
Driver | LNC1500W servo driver from Taiwan |
Inverter | BEST 11KW frequency converter |
Reducer | MDL |
Guide rail | X/Y/Z axis adopt square guide rail from Taiwan |
Rack | 1.5m high-precision helical rack from Taiwan |
Bearing | NSK-P4 bearing from Japan |
Vacuum pump | 7.5KW vacuum pump |
Vacuum cleaner | 5.5KW high power double barrel vacuum cleaner |
Main electric parts | CHNT and schneider |
Control cabinet | Double doors, large vertical cabinet |
Oil filling system | Automatic pressure regulating oil filling system to avoid over or under filling |
Dust removal | Vacuum interchangeable regulating valve, no air chamber in the middle, greater suction power |
Positioning system | 3+2 positioning cylinder, precise positioning, auto-checking instrument, automatic tool -setting, automatic material pushing |
High strength vacuum adsorption table | Six zones - four sets of large diameter air flow valves in independent zones |
Machine head components | Z-axis independent direct-connected motor base structure + brake positioning |
