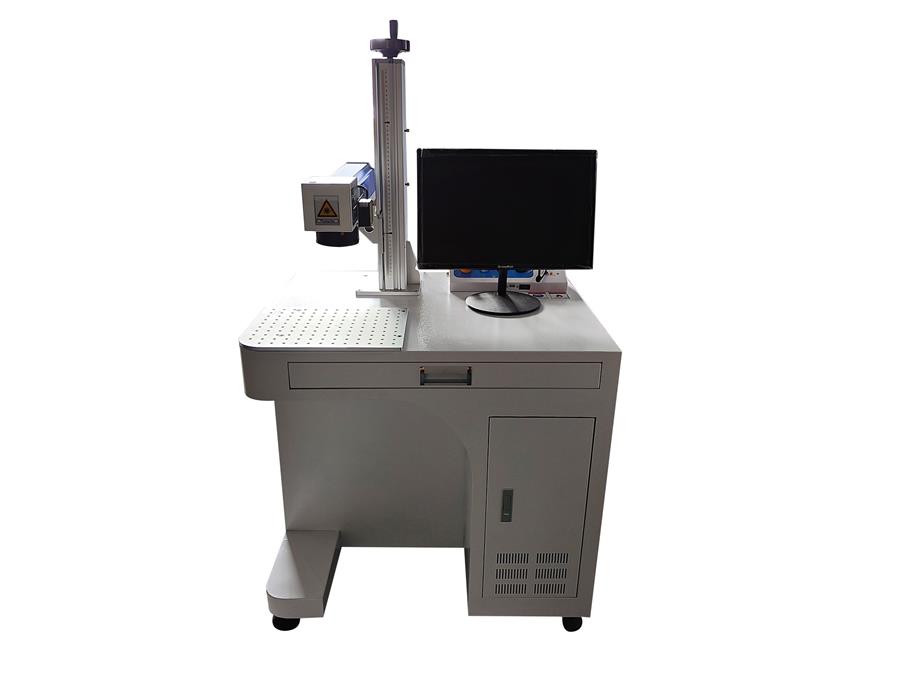

Techinical Index:

Laser power: 20/30/50/100W

Working area: 110*110mm. 150*150mm/200*200mm/300*300mm (Optional)

Laser Wave length: 1064nm

Response time: 0.5ms

Frequency of pulse: 20-100KHz

Max marking depth: ≤0.4mm

Marking speed: ≤10000mm/s

Marking lines: 1-10 lines(in the marking area)

Minimum line width: 0.005mm

Minimum character: 0.15mm

Repeatability accuracy: ±0.001mm

Resolution ratio: 0.1mm

Marking content: Text,pattern,date,bar code,etc

Operation system: Microsoft Windows XP,Windows 2000, Window 7

Control software: EZCAD control software

Graphic format support: bmp, jpg, gif, tga, Ai, bmp, dst, dxf, plt, png, tif, ai, dxf, dst, plt

Total power: ≤300KW

Operation temperature: 5℃-40℃

Relative moisture: ≤ 90%, no fog

Supply Voltage: 220V/50Hz/10A

Life: 50000 hours

Cooling: Air cooling

Packing size/G.W.: 90*85*150cm/130kgs

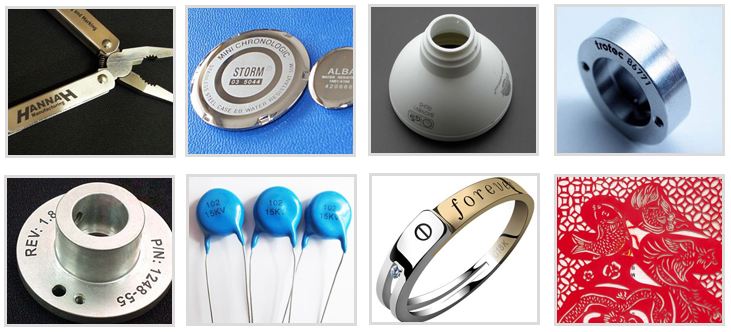

Application:

Suitable for: anodized sculpture, hand tools deep carved, aluminum a deep carved, stainless steel surface carved black, IC table sculpture, etc.

Video:

https://youtu.be/lnigVNXaRl8                  (MOPA mark color on stainless steel)

https://youtu.be/0MYC0K6uCMU             (3D mark on stone)

https://youtu.be/oXu2VjsuO0I                 (50W relief Embossment marking)

https://youtu.be/K3Xk1JENIQU                (Mark picture on aluminum)

https://youtu.be/Kb2VCBuL1F0                (Mark picture on wood)

https://youtube.com/shorts/1yZNUIr6Fg4?feature=share   (60W 3D Deep Marking on steel)
