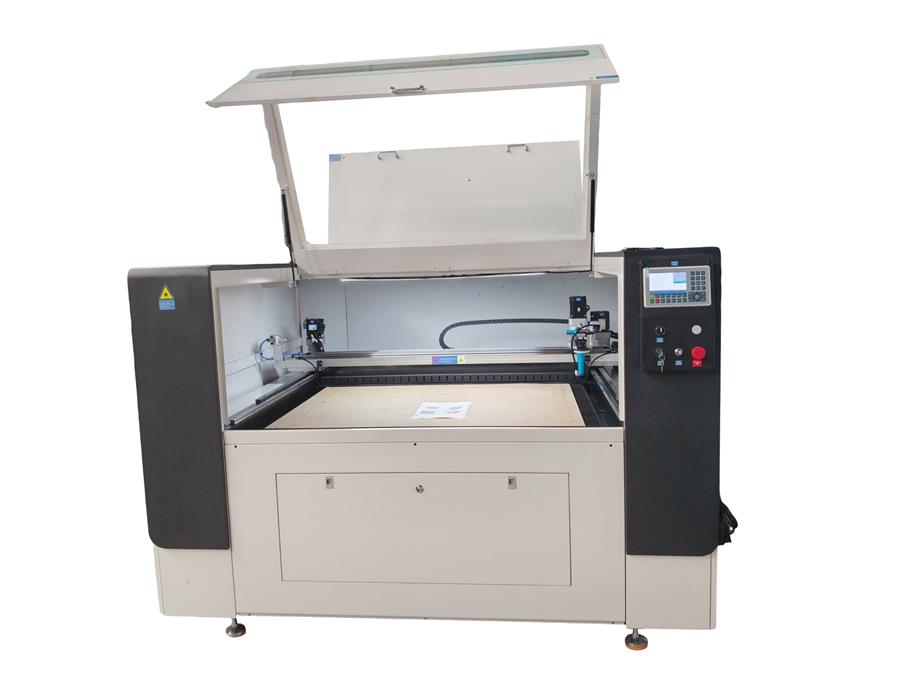

HQ1390 Fast Speed


Technical Index:


Laser Style: CO2 Sealed-Off laser glass tube, water-cooled

Laser power: 150W/300W

Engraving size: 1300*900mm

Engraving speed: 0-1000mm/sec.

Cutting speed: 0-600mm/sec.

Positional Accuracy: <+/-0.01mm

Power supply: AC220V/50Hz, AC110V/60Hz

Total Power: <1200W

Operating temperature: 0-45 degree centigrate

Operating Moisture: 5-95%

Maximum engraving depth: 3.5mm

Minimum cutting character: English letter: 1.0 * 1.0mm

Available Figure Format: BMP, PLT, DST, DXF, AI

Supporting Software: CorelDraw, PhotoShop, AutoCAD,TAJIMA

Driving System: 2 phases stepper motor

Packing Dimension: 2720 * 2100 * 1550mm

Gross Weight: 650kg



Special Features:

-Heavy welded frame with thick metal pipse for stability even in hight speed.

-Servo motors and drivers

-Rack transmssision for both X and Y axis

-CCD cameral adapted

-Cutting speed can reach 600-1000mm/sec.



Applicable Industry:

Cutting materials which needs in fast speed, such as fabrics, paper, leather etc.



Video:

https://youtu.be/CG-AH-YQnSo

https://youtu.be/BycxEyr0l1k        (Slef-Adhesive sticker cut and kiss cut)
